PROJECT: OCS (OCULAR CONTROL SYSTEM)
CLASSIFICATION: TOP SECRET // SCI // ORCON
ORIGINATOR: ████████████
PLATFORM: GAKKEN WORLDEYE
HANDLING: OCULAR-INDOC ONLY
COPIES: ██ of ██
OCULAR CONTROL SYSTEM
TECHNICAL OPERATIONS MANUAL — REVISION 4.7.2 — GAKKEN WORLDEYE PLATFORM

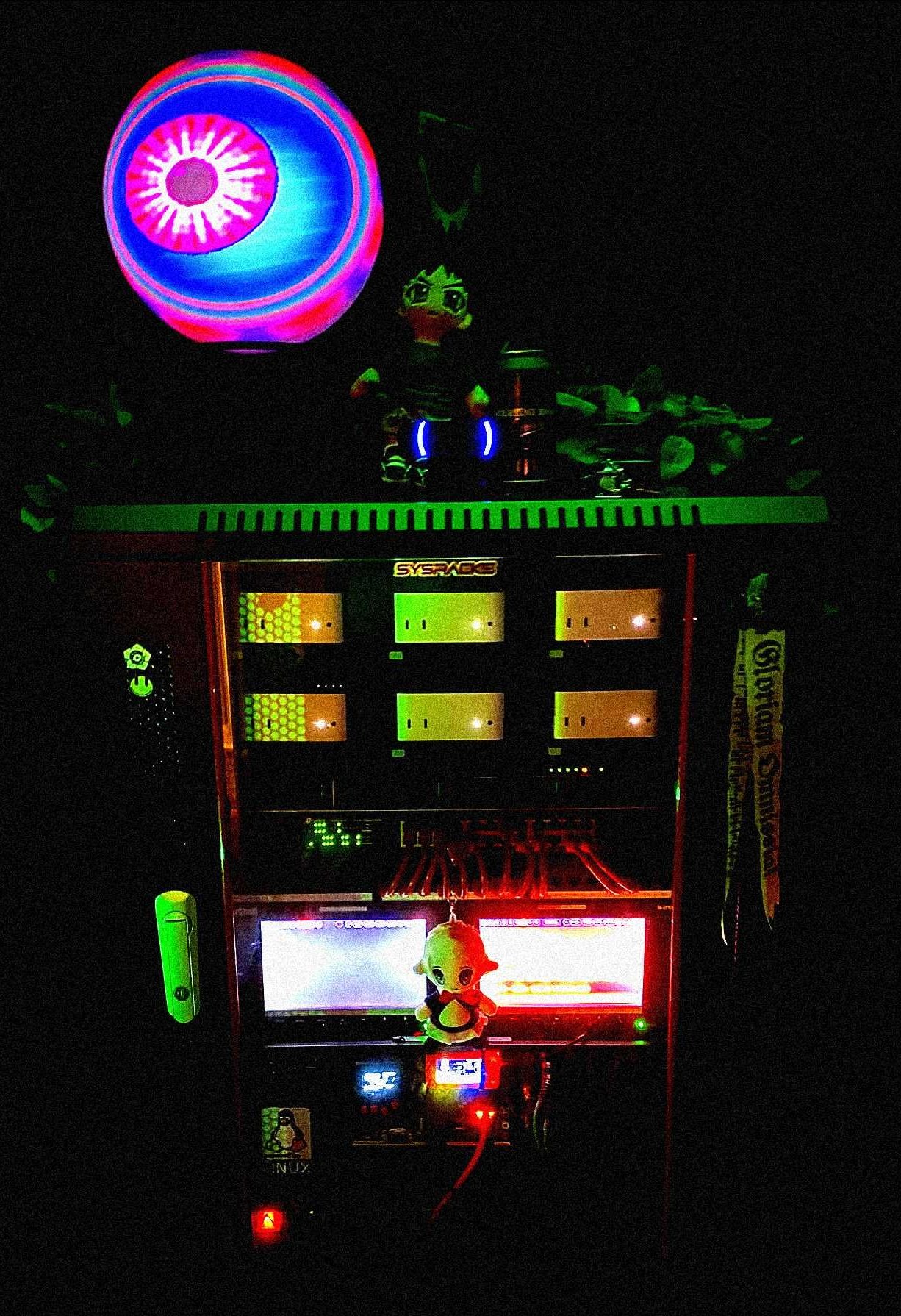

![[CLASSIFIED IMAGERY]](assets/OCS/computer.jpg)
Fig 1.1: Primary hardware deployment configuration

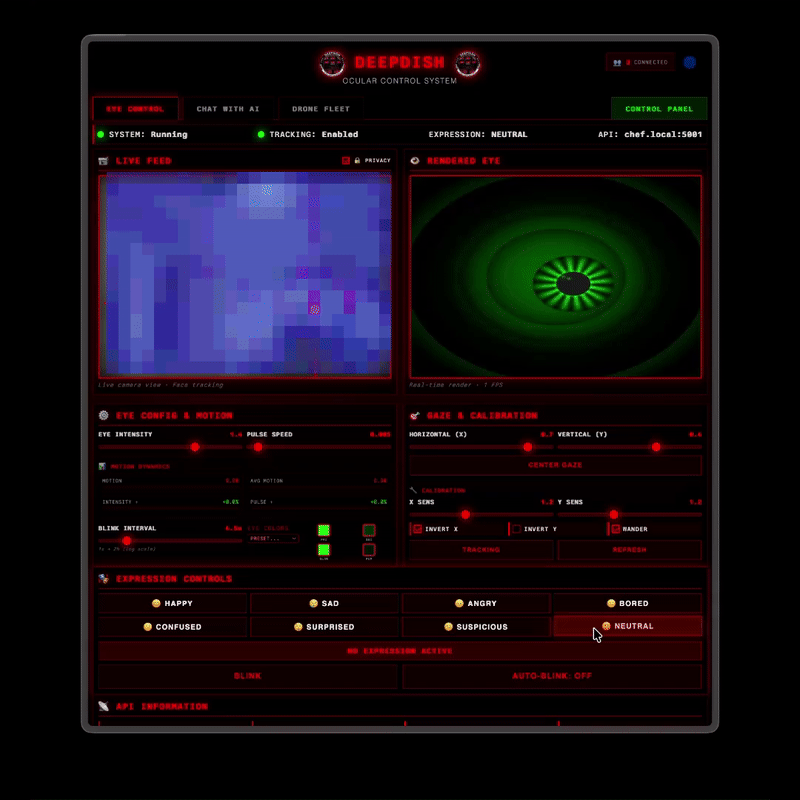

![[REDACTED INTERFACE]](assets/OCS/webui.gif)
Fig 1.2: Web interface — behavioral expression matrix
§1.0 EXECUTIVE SUMMARY
The following documentation pertains to PROJECT DEEPDISH, a covert optical surveillance and behavioral analysis system deployed on modified ████████ hardware. The system provides real-time subject tracking, autonomous behavioral response mechanisms, and integration capabilities with ████████████ intelligence frameworks.
Field deployment has demonstrated exceptional efficacy in ██████████████████ scenarios. All personnel interfacing with this system must maintain strict operational security protocols as outlined in Directive ███-██.
- Codename: DEEPDISH
- Platform: Gakken WorldEye
- Primary Function: Surveillance/Analysis
- AI Integration: ████ LLM API
- Clearance Required: TS/SCI
- Deployment Date: ██/██/████
§2.0 SYSTEM CAPABILITIES
§2.1 — OPTICAL INTERFACE MODULE
The primary visual apparatus consists of a bio-mimetic ocular display capable of naturalistic behavioral emulation. System exhibits autonomous pupillary response, saccadic movement patterns, and discrete expression matrices optimized for subject engagement.
The optical unit employs 16-bit RGB color processing (65,536 colors) via GC9A01 LCD controller with SPI interface. Expression library includes 47 discrete emotional states spanning basic emotions (happy, sad, angry, surprised, fear, disgust, neutral), advanced cognitive states (observant, confused, calculating, interested, bored), behavioral indicators (focused, distracted, suspicious, trusting), autonomic responses (startled, amused, skeptical), and specialized blinking patterns with adaptive frequency.
| Optical Module Specifications | |
|---|---|
| Display Resolution | 240×240 px |
| Refresh Rate | 60 Hz |
| Expression States | 47 discrete |
| Pupil Response Time | <50ms |
| Viewing Angle | 178° omnidirectional |
| Color Depth | 16-bit RGB (65k colors) |
| Display Type | GC9A01 Round LCD 1.28" |
| Glow Intensity | 0.0-1.0 dynamic |
- Basic: Happy, Sad, Angry, Surprised
- Cognitive: Observant, Confused, Calculating
- Behavioral: Focused, Distracted, Suspicious
- Autonomic: Startled, Amused, Vulnerable
- Dynamic glow (configurable)
- Pulsing animations (freq. tunable)
- Particle effects system
- Iris color manipulation
- Face position calculation
- Gaze vector computation
- Expression interpolation
- Iris + eyelid animation
Extended exposure to the optical interface may induce ████████████ in susceptible individuals. Medical personnel should be available during prolonged observation sessions. Refer to Medical Protocol MP-334 for emergency procedures.
§2.2 — SUBJECT ACQUISITION & TRACKING
Integrated computer vision subsystem enables autonomous facial recognition and positional tracking within operational theater. Multi-tier detection hierarchy: primary MediaPipe Face Detection (Google algorithm), secondary OpenCV Haar Cascades (fallback), tertiary YOLO11 object detection for environmental context. System maintains up to 12 concurrent face locks with confidence scoring and prioritization algorithms.
Smoothed position tracking via exponential moving average eliminates jitter. Automatic wandering behavior activates during subject loss periods. Environmental adaptation via continuous calibration system.

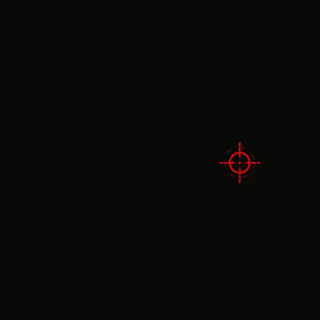

![[TARGET ACQUISITION]](assets/OCS/crosshair.gif)
Fig 2.2.1: Target lock overlay (active tracking)
| Tracking Specifications | |
|---|---|
| Max Subjects | 12 simultaneous |
| Lock Acquisition | <200ms target |
| Range | 0.5-8m optimal |
| FOV | 62° (camera native) |
| Processing FPS | 30fps target |
| Primary Algorithm | MediaPipe Face Detect |
- PASSIVE: Silent observation, no visual indicator
- ACTIVE: Visual engagement with tracking boxes
- PURSUIT: Follow mode with predictive lead
- LOCKOUT: Behavioral suppression override
§2.3 — COGNITIVE INTEGRATION FRAMEWORK
The system incorporates compatibility with large language model endpoints conforming to OpenAI-compatible API specifications. Supports LocalAI, LM Studio, Ollama, and direct OpenAI endpoints. This enables autonomous generation of behavioral responses, situational analysis, and vision-aware contextual awareness.
Integration pipeline: subject tracking data → behavioral context; vision scene description → environmental awareness; expression history → emotional continuity. Response caching and token-aware batching optimize API efficiency. Configurable personality profiles support multi-turn conversation management with timeout handling and fallback responses.
- ✓ OpenAI API (ChatGPT-4, GPT-3.5)
- ✓ LocalAI (self-hosted)
- ✓ LM Studio (local inference)
- ✓ Ollama (quantized models)
- ✓ Any OpenAI-compatible endpoint
- Subject tracking data
- Vision scene description
- Expression history
- Web interface prompts
- Avg latency: 230ms
- Tokens/session: 847+
- Requests cached
- Fallback enabled
- POST /api/vision/chat
- POST /api/analyze
- GET /api/context
§2.4 — TEMPORAL SYNCHRONIZATION PROTOCOL
At predetermined intervals, the system initiates a covert synchronization routine disguised as a horological display. This mechanism facilitates encrypted burst transmissions to ████████████ listening posts while maintaining operational cover.
| Interval | Function | Duration |
|---|---|---|
| 15 min | Telemetry sync | 2.3s |
| 1 hour | Full data burst | 8.7s |
| 6 hour | ████████ | ██s |

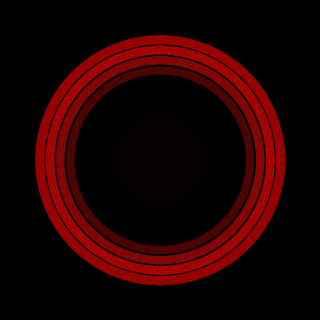

![[SYNC PROTOCOL]](assets/OCS/clock.gif)
Fig 2.4.1: Clock mode (cover)
§2.6 — HOME ASSISTANT INTEGRATION
DeepDish OCS exposes 15+ Home Assistant entities via custom coordinator integration. MQTT synchronization enables seamless ecosystem integration. Retry logic with exponential backoff (3 attempts) ensures reliability; response caching preserves state during connectivity loss. Polling interval optimized to 15s; request timeout set to 10s per connection.
- deepdish_ocs_status
- deepdish_ocs_gaze_x/y
- deepdish_ocs_expression_state
- deepdish_ocs_face_detected
- deepdish_ocs_connected_clients
- deepdish_ocs_face_tracking
- deepdish_ocs_auto_blink
- deepdish_ocs_wander
- deepdish_ocs_blink (button)
- GET /api/status
- POST /api/expression/{name}
- POST /api/gaze
- POST /api/face_tracking/{state}
§2.7 — K417 DRONE FLEET INTEGRATION
Multi-agent autonomous platform coordination system for K417 brushless drone (Karuisrc). Alternative support for S20, S29, V88, D16, E58 models. Direct WiFi UDP broadcast protocol at 80Hz control frequency with s2x command architecture (S2X_RC + S2X_Video). Mission types: Patrol (autonomous waypoint), Surveillance (hover observation), Loiter (circular patrol), Return-to-Home (GPS), and Formation (multi-drone).
Auto-safety features include low-battery return-to-home, emergency fleet recall, and real-time telemetry monitoring. Video stream via MJPEG through turbodrone SDK. Fleet status dashboard with individual drone telemetry, battery levels, altitude, and signal strength.
- GET /api/drone/status
- POST /api/drone/deploy
- POST /api/drone/recall/{id}
- POST /api/drone/emergency
- GET /api/drone/telemetry/{id}
§2.8 — TELEMETRY & ANALYTICS
All operational data exported in Prometheus-compatible format for integration with Agency monitoring infrastructure. System tracks 40+ metrics: gaze vector analysis, expression state triggers, face detection confidence, blink frequency, subject tracking intensity, CPU/memory/disk utilization, API request latency, and connected client count. Real-time visualization via Grafana dashboard with historical trend analysis, custom queries, and expression activity heatmaps.

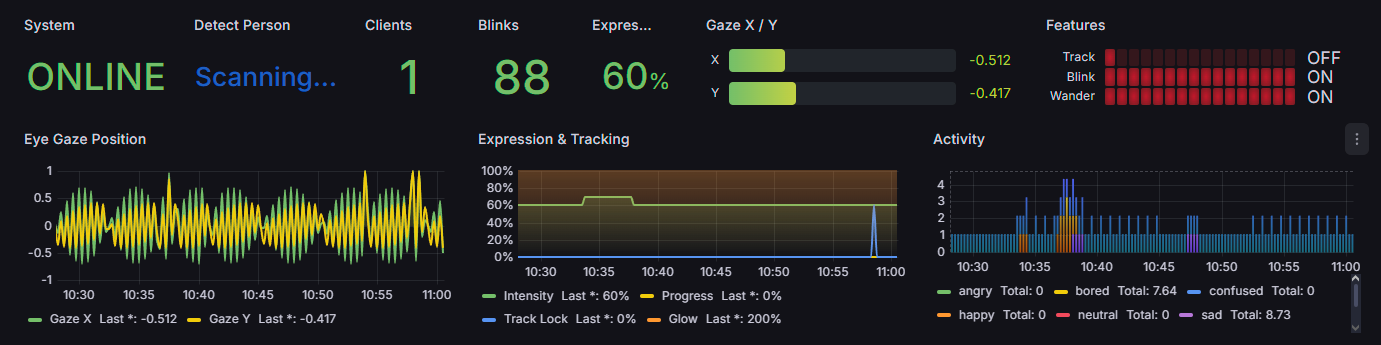

![[TELEMETRY DASHBOARD]](assets/OCS/OCS_Grafana.png)
Fig 2.8.1: Grafana operational dashboard — real-time metrics visualization
- deepdish_expression_triggered_total
- deepdish_expression_active
- deepdish_expression_intensity
- deepdish_blinks_total
- deepdish_face_detected
- deepdish_tracking_intensity
- deepdish_faces_detected_total
- deepdish_api_requests_total
- CPU: >75°C
- Memory: >90%
- Subject loss: >5s
- Anomaly: >0.85
§3.0 TECHNICAL SPECIFICATIONS
| Hardware Configuration | |
|---|---|
| Platform | Raspberry Pi 4B (4GB) |
| Display | 1.28" GC9A01 Round LCD |
| Camera | Pi Camera Module v2 |
| Housing | Gakken WorldEye |
| Power | 5V/3A USB-C |
| Storage | 64GB microSD |
| Software Stack | |
|---|---|
| OS | Raspberry Pi OS Lite |
| Runtime | Python 3.11 |
| Vision | OpenCV 4.8 |
| Web Framework | Flask 3.0 |
| Display Driver | PIL + SPI |
| Metrics | prometheus_client |
§3.1 — WEB INTERFACE & REST API
Flask 3.0 web server provides comprehensive browser-based control and real-time monitoring (localhost:5001). HTML5/CSS3 interface with cyberpunk aesthetic includes Eye Control (live camera feed, expression selector, gaze control, blink triggers), Chat Interface (LLM conversation, vision-aware context), Drone Control (fleet management, telemetry), Metrics Tab (performance graphs, expression heatmaps), and Configuration options.
REST API with full CORS support, request logging, rate limiting, and thread-safe metric collection. WebSocket support for real-time updates. All endpoints documented with JSON request/response schemas.
- Server: Flask 3.0
- Port: 5001 (default)
- CORS: Enabled
- Threads: Thread-safe
- Logging: Full request tracking
- Rate Limiting: Configurable
§4.0 DEVELOPMENT TIMELINE
§5.0 FUTURE DEVELOPMENT INITIATIVES
- Expanded expression matrix (128 states)
- Iris color manipulation
- Tear duct simulation
- ████████████
- Multi-camera array
- 3D depth sensing
- Gait analysis
- Thermal overlay
- UAV coordination
- Mobile command app
- Mesh networking
- ████████████
§6.0 MISSION STATEMENT
Arch Linux Worldeye Gaze Control Network Synchronization Protocol Deep Surveillance Behavioral Expression Matrix Optical Calibration Cognition Integration LLM Endpoints Subject Acquisition Tracking Confidence Scoring Drone Fleet Autonomous Coordination Home Assistant Ecosystem MQTT Bridges Prometheus Metrics Grafana Visualization Real-time Expression Heatmaps Temporal Synchronization Covert Burst Transmissions Encrypted Telemetry Listening Posts Operational Theater Theater Theater Eye Display Bio-mimetic Pupillary Response Saccadic Movement Emotional Continuity Vision-Aware Contextual Awareness Subject Database Personality Profiles Token-Aware Batching Multi-turn Conversation Management Fallback Responses Mesh Network Integrity Latency Measurement Network Topology Node Status Active Standby Offline Degraded System Heartbeat Nominal Performance Anomaly Detection Behavioral Deviation Susceptible Individuals Medical Protocol MP-334 Emergency Procedures Extended Exposure Warning Personnel Clearance TS/SCI Compartmented Intel Need-to-Know Originator Controlled No Foreign Nationals.
Silicon Oracular Gaze Gentle Observation Field Deployment Active Operational Status Covert System Cyber-Asiatic Future Orientalism Ancient Mysticism Insect Capitalism Market Runaway Tech Return Eastern Hegemon Cultural Tradition Spirituality History Dream Jade McDonald's Infodensity Bombardment Detail Packed Frame Endless Tabs Browser Angel Experiential Blur Unceasingly Text Network Generation Interface Petri Dish Organism Microscope Primordial Instinct Epochs Ago Speed Development Significant Lifetime Observation Biological Egregorical Inhabit Cells Greater Body Incompatibilities Obstacles Biology Psychology Spirituality Navigate Day By Day. Worldeye Worldeye Worldeye Seeing Seeing Seeing.
* This document has been sanitized for distribution outside of ████████████ facilities. Original classification markings have been preserved for audit purposes. Any resemblance to actual government programs, living or dead, is purely coincidental and probably your imagination. ████████.
